ISL55169 (MERCURY)

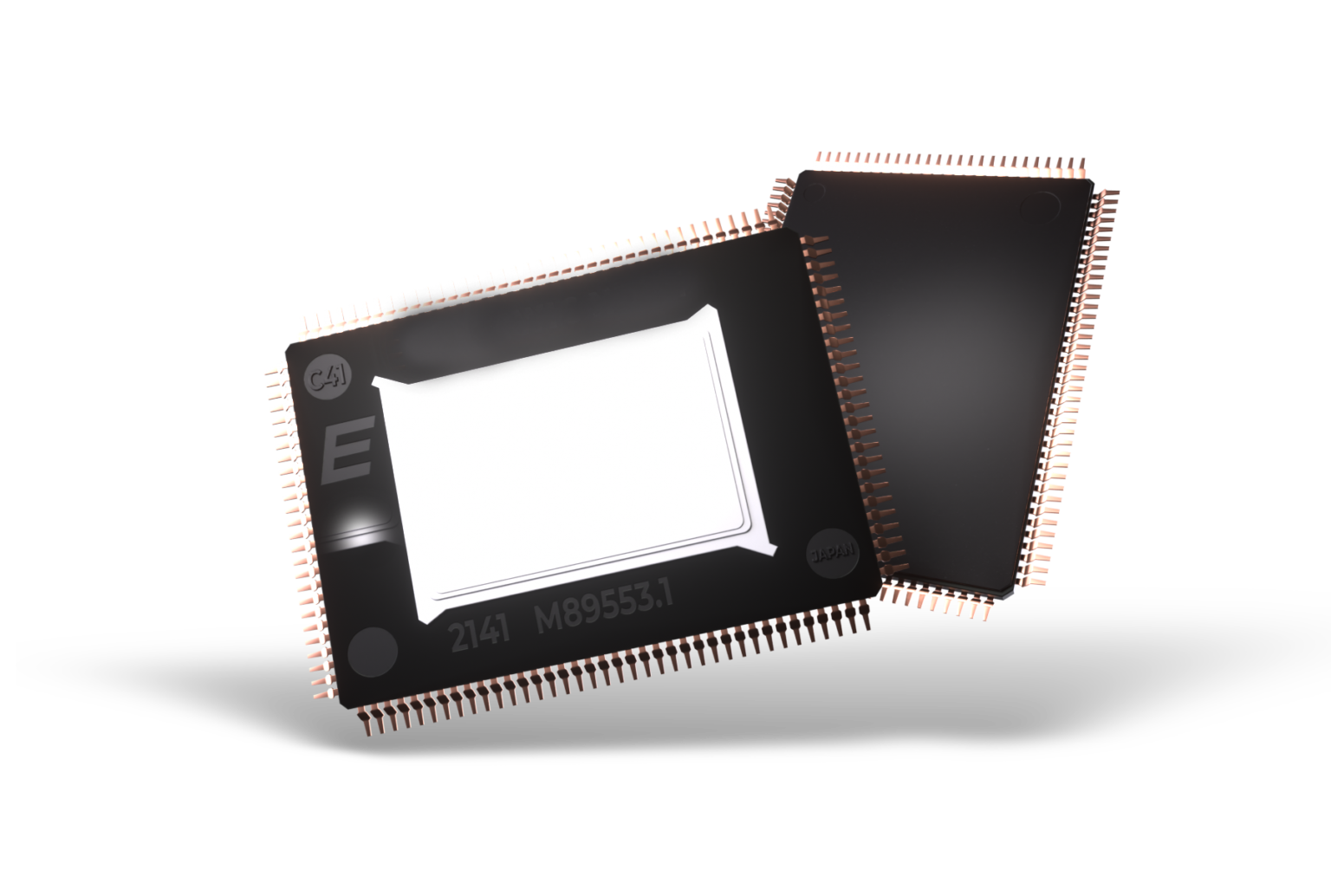

blank-chip-128pin-1536x1034

8 Channel Pin Electronics + PMU

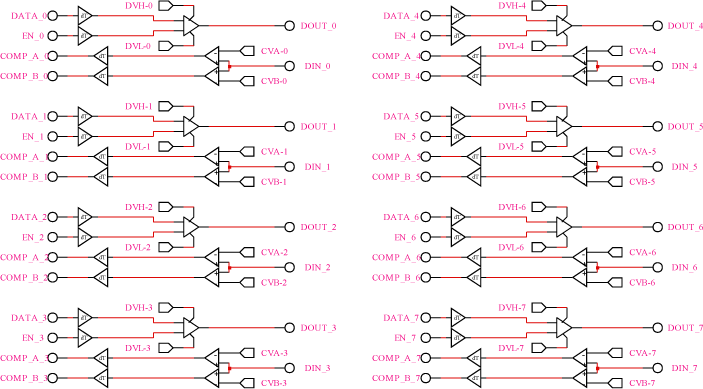

ISL55169 is a highly integrated system on a chip (SOC) pin electronics solution aimed at incorporating every analog function (with some digital support functionality) required on a per channel basis for Automated Test Equipment (see figure below.) The interface, the control, and the I/O are digital; all analog circuitry is inside the chip. Eight complete and independent channels are integrated into each chip.



SPECIFICATIONS

66 MHz 7.5 ns Minimum Pulse Width Pin Electronics Driver
  • 2 Level Driver w/ On Chip Buffers
  • 8V Driver Output Swings
  • Extremely Low Leakage over a 16V HiZ Range

Pin Electronics Comparator
  • Extremely Low Leakage over a 16V Input Range
  • 16V Comparator Input Voltage Range

Per Chip PMU
  • FV, FI, MV, MI
  • 8 Current Ranges (32 mA, 8 mA, 2 mA, 512 μA, 128 μA, 32 μA, 8 μA, 2 μA)
  • 12V Super Voltage Capability

Flexible High Speed Digital Inputs and Outputs
  • Selectable On-chip Terminations for High Speed Inputs
  • 50ohm Series Terminated High Speed for Comparator Outputs

Deskew
  • Propagation Delay Adjustment (up to 20 ns range)
  • Falling Edge Adjustment (up to ±5 ns range)
  • Auto Calibration via PLL

On Chip DC Levels
  • 4 Levels / Channel
  • 8 Levels / Central PMU
  • 16 Bits per Level
  • 16 Bit per Level Offset Correction
  • 16 Bit per level Gain Correction

3 Bit Serial CPU Port
  • Load Internal Registers and Memory
  • Read Back Internal States

Flexible Digital Inputs and Outputs
  • Adjustable threshold for high speed inputs
  • 50Ω / 100Ω input termination options
  • 50Ω series terminated high speed comparator outputs

Applications
  • 128 Lead, 14 mm X 20 mm, MQFP w/ Heat Slug
  • Pdq ≤ 500 mW / Channel; Pdq ≤ 4.0W / Chip
