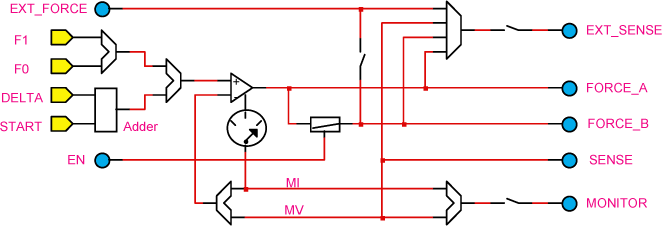

SPECIFICATIONS

1A DC Output Drive Capability

•  6 Current Ranges
• (1,024 mA, 128 mA, 8 mA, 1 mA, 125 μA, 15.625 μA)
• Glitchless Current Range Changing
• HiZ Capability w/ Extremely Low Leakage

Full Functionality

•  FV, FI, MV, MI
• 4 Quadrant Operation

Ganging Capability for Higher Current Applications

Integrated External Force and Sense Switches

Independent Power Supply for Output Stage

•  Operating Voltage
• 24V Supply Range
• Adjustable Output Range
• 4 Voltage Ranges (4V, 8V, 16V, 24V)
• Adjustable Slew Rate
• External Precision DAC Drive Capability

Programmable Clamps

•  Voltage Clamps
• Current Clamps

Ultra Low Noise External DAC Mode

Programmable Alarms

•  Over Current
• Over Voltage
• Over Temperature
• Kelvin Sense

Dedicated Real Time DAC for Forcing Level

•  Increment / Decrement Option
• Linear / Binary Increment / Decrement Option
• 16 Bit per Level Offset & Gain Correction

On-Chip DC Support Levels

•  16 Bits per Level
• 16 Bit per Level Offset & Gain Correction

3 Bit Serial CPU Port

•  Load Internal Registers and Memory
• Read Back Internal States

Package

•  Lead Free
• 64 Lead, 10 mm X 10 mm, TQFP w/ Heat Slug

Power Dissipation

•  Pdq (No Load) = 700 mW to 1.5 Watt
