ELE58VE2A-NEJ01 (VESUVIUS)

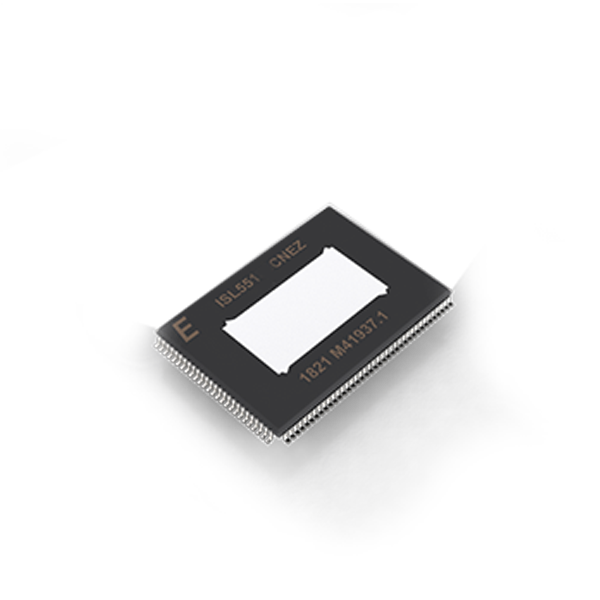

chip3

8 Channel 16V @512mA DPS

The interface, the control, and the I/O are digital; all analog circuitry is inside the chip. For most tester applications, no additional analog hardware needs to be developed or used on a per channel basis.




SPECIFICATIONS

Per Channel DPS

  • FV, FI, MV, MI, HiZ Capability
  • 16V Measure Voltage Input Compliance Range
  • 2 Force Voltage Ranges (8V, 16V)
  • 3 Measure Voltage Ranges (4V, 8V, 16V)
  • 6 Current Ranges: (512mA, 25.6mA, 2.56mA, 256μA, 25.6μA, 2.56μA)
  • Programmable Voltage and Current Clamps

Power Management

  • Independent Output Buffer Power Supply (VCCO)
  • Ability to Exceed VCCO in Lower Current Ranges (Patent Pending)

Flexible Ganging Capability

  • No Restrictions on Maximum # DPS Units

3-Bit Serial CPU Port Protection

  • On-Chip Junction Temperature Monitor
  • Over-Temperature Shut Down per Chip
  • Kelvin Connection Sensing/Alarm per Channel
  • Over-Current Sensing/Alarm per Channel

Monitor

  • One General Purpose Central Monitor per Chip
  • Scaling and Shifting Capability
  • HiZ Capability
  • One Dedicated Measure Current Monitor per Chip
  • Scaling and Shifting Capability
  • HiZ Capability
  • Eight Independent V/I Monitors Per Chip
  • Maximum Measurement Throughput

Global External Force/Sense



Connectable to any Channel On-Chip DAC to Generate DC Levels

  • 2 Independent FV Levels/Channel
  • Central Resource Mode w/16 Selectable Levels
  • Independent Source and Sink Clamp Levels/Channel
  • 16 bits/Level
  • On-Chip Offset and Gain Correction per Level

Package/Power Dissipation

  • Pb-Free (RoHS Compliant)
  • 128 Lead, 14mmx20mm, LQFP w/Exp Heat Slug
  • Pdq 115mW/Channel; Pdq 920mW/Chip

Applications

  • Automated Test Equipment
  • Logic/ASIC Verifiers
  • Instrumentation
